Apollo Federation Patterns: Localization

April 26, 2020

This post is part of a series about Apollo Federation architectural patterns. Check out the introduction for some background on how the example code is structured.

Your schema may include enums or value types that aren’t ideal for displaying in a UI. In this example, we have a PaymentStatus enum with all-caps English values like AUTHORIZED. We’d prefer to show the title-cased “Autorisé” for French-speaking users (according to Google Translate—I definitely don’t speak French!)

In addition, we provide money values as amount / currencyCode pairs in our Money object type. We’d prefer to show formatted string such as ”\$1.99” or “€9,99” depending on the currency code.

query($id: ID!) {
  payment(id: $id) {
    status # AUTHORIZED
    statusText # Authorized, Autorisé, or Autorizado
    totalMoney {
      amount
      currencyCode
    } # value type
    totalMoneyFormatted # "$1.99"
  }
}

In both cases, we usually have localization and formatting logic repeated in each and every one of our web and native applications. Wouldn’t it be nicer to define this logic once on the server?

The “localization” service in this example uses @requires directives and type extension to add localized fields to types. Fetching a localized value is just as easy as fetching the raw value.

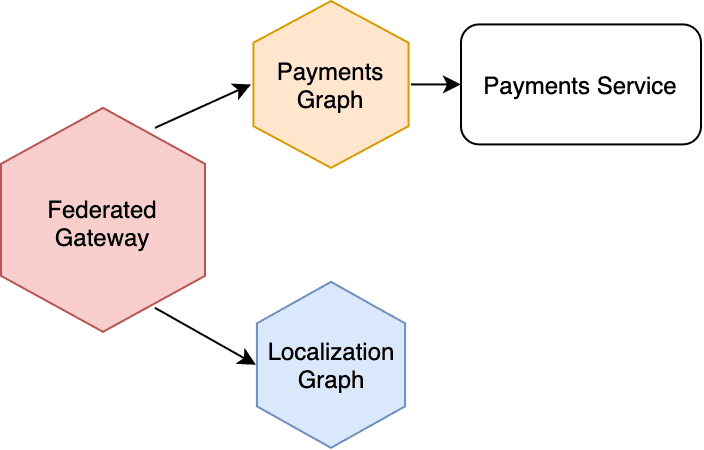

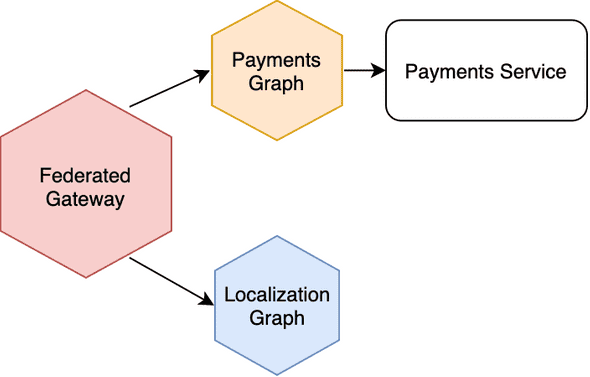

The service topology looks very similar to the Managing Secrets example, only the localization graph service is a stateless service with no underlying backend.

How the Example Works

For translating strings to different languages, I’m using the i18n library. Its init function can extract the user’s locale from the Request object, so that’s the first thing I do in the context builder.

const server = new ApolloServer({
  context: async ({ req, res }) => {
    // Sets the current locale by reading Accept-Language headers
    await i18n.init(req, res)
    // Attach locale-related properties and functions to the context
    return {
      currentLocale: i18n.currentLocale,
      t: i18n.translate,
    }
  },
})

Then in a resolver, I can use the t() function on the context to convert a string like “AUTHORIZED” into “Autorisé”:

const resolvers = {
  Payment: {
    statusText({ status }, _, { t }) {
      return t(`PaymentStatus.${status}`)
    },
  },
}

In a real federated graph with multiple services, you would need to forward the Accept-Language header from the Gateway to the Localization service by customizing the requests.

(For demonstration purposes, I also added a locale: String argument to the fields that can override the locale derived from headers.)

In the query plan, you can see how the Gateway sends the raw values (status and totalMoney) to the localization service for translation in statusText and totalMoneyFormatted resolvers.

QueryPlan {
  Sequence {
    Fetch(service: "/sandbox/src/services/payments.js") {
      {
        payment(id: "p1") {
          id
          status
          __typename
          totalMoney {
            amount
            currencyCode
          }
        }
      }
    },
    Flatten(path: "payment") {
      Fetch(service: "/sandbox/src/services/localization.js") {
        {
          ... on Payment {
            __typename
            id
            status
            totalMoney {
              amount
              currencyCode
            }
          }
        } =>
        {
          ... on Payment {
            statusText
            inFrench: statusText(locale: "fr")
            inSpanish: statusText(locale: "es")
            totalMoneyFormatted
          }
        }
      },
    },
  },
}
